INSTALLATION OF TEXAS HISTORICAL MARKER ON OCTOBER 22, 2005 TO HONOR THE EXPEDITION BY BELGIAN ASTRONOMER JEAN-CHARLES HOUZEAU TO OBSERVE THE TRANSIT OF VENUS ACROSS THE SUN DECEMBER 6, 1882
DATE & TIME: Saturday, October 22, 2005, 11AM CENTRAL TIME

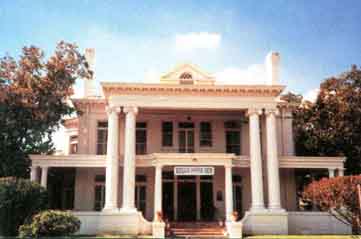

LOCATION: The Bullis House Inn , 621 Pierce Avenue, San Antonio, Texas. This is a bed and breakfast hotel where participants can stay if they like. Call 1.877.4774100 or 210.2239426 for reservations.
WHAT WILL HAPPEN: Installation of a Texas Historical Marker commemorating the Transit of Venus observations made by a team of Belgian astronomers led by Jean-Charles Houzeau of the Royal Observatory in 1882, one of the more remarkable men of his time. The owners of the Bullis House Inn, Alma and Steve Cross, have gratiously allowed us to install the marker on their property very close to the original spot where the observation was made. This is a largely unknown chapter in Texas history.
11:00am Viewing of the sun through telescopes
11:30am Introduction-Bryan Tobias, San Antonio Astronomy Association
11:40am “The Roadmap to the Historic Marker”, Paul Maley, NASA Johnson Space Center Astronomical Society
11:55am “Jean-Charles Houzeau and his exploits”, Dr. Chris Sterken, Free University of Brussels, Belgium
12:35pm Unveiling of historic marker

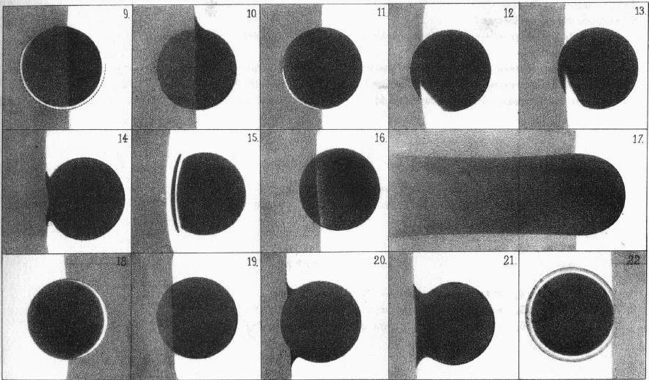

San Antonio, Texas was a rather unlikely location for an international astronomical expedition from Belgium undertaken to observe the Transit of Venus on December 6, 1882. This expedition was led by the Belgian astronomer Jean Charles Houzeau of the Royal Observatory. He had lived in San Antonio for many years before returning to Belgium and was familiar with it as a potential observing spot. Two Belgian expeditions observed the Venus transit of 1882, the first went to Chile, the second to San Antonio, Texas, to observe the transit from both southern and northern hemisphere sites, in order to find the parallactic displacement of Venus on the solar disk. Both parties were equipped with identical instruments, so-called “heliometers with unequal objectives”. This special arrangement, invented by Jean-Charles Houzeau, director of the Brussels Royal Observatory, consists of two semi-circle-shaped lenses of different diameters and focal lengths, which could be moved relative to each other by a micrometer. They produced a large and a small image of the sun, plus a large and a small image of Venus. The trick was to shift the two lenses of such a heliometer so that the small image of the sun, produced by the short-focus lens, coincided with the dark large image of Venus projected on the very large image of the sun, and to read the heliometer setting.

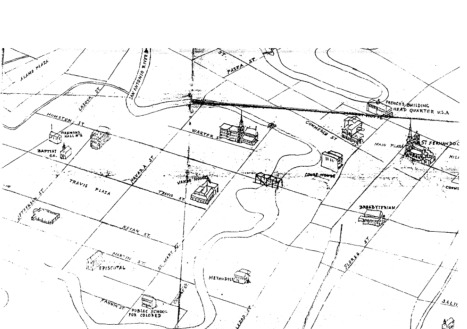

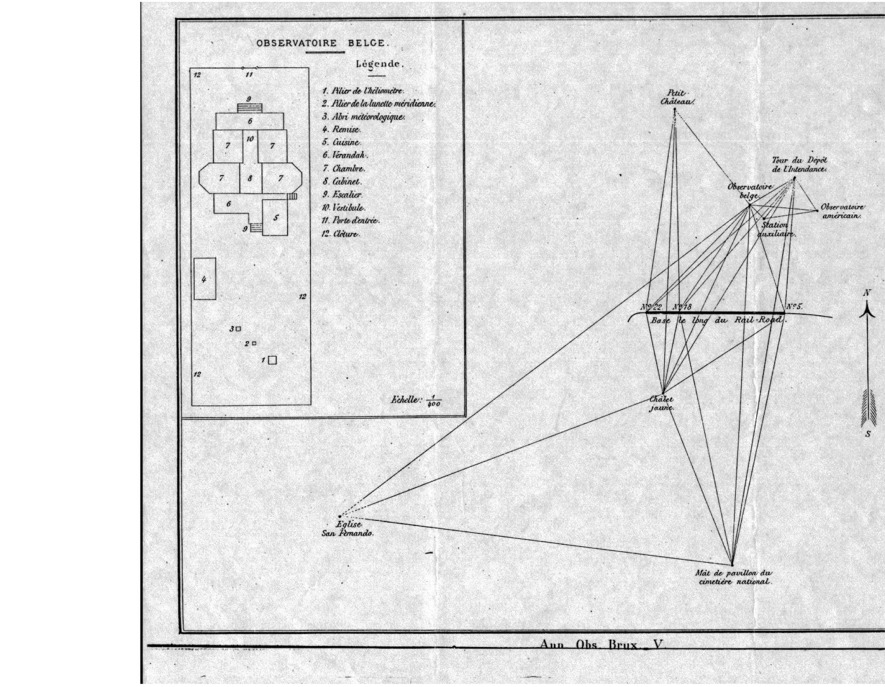

Jean-Charles Houzeau himself headed the “Texas” party, which suffered from clouds during the early portion. Other members of his team included Albert-Benoit Lancaster (1849-1908), meteorological inspector,and Charles-Emile Stuyvaert (1851-1908), assistant astronomer. Houzeau rented a house in the Government Hill district across the street from Fort Sam Houston. . According to Houzeau’s survey his telescope piers were located 195 meters south, 289 meters west of the Quadrangle Tower– the main feature of the fort. Only about half of the transit could be observed, and 124 measurements were completed. Houzeau [see: Houzeau, J. C. 1884, Passage de Vénus du 6 Décembre 1882, Annales de l’Observatoire Royal de Bruxelles, N. S., Tome V., premier fasc.] published the report of the campaign and revealed his final result of 8.911±0.084 arseconds for the value of the solar parallax. He wanted a more precise value but blamed the larger than expected error on the poor sky conditions in San Antonio. Houzeau further commented that after the haphazard results of the various international expeditions for the transit that occurred 8 years beofre, his approach to the problem was at least a uniquely fresh method to observe a Venus transit.

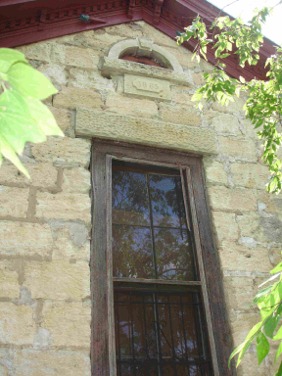

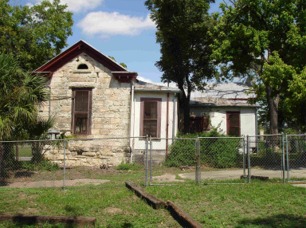

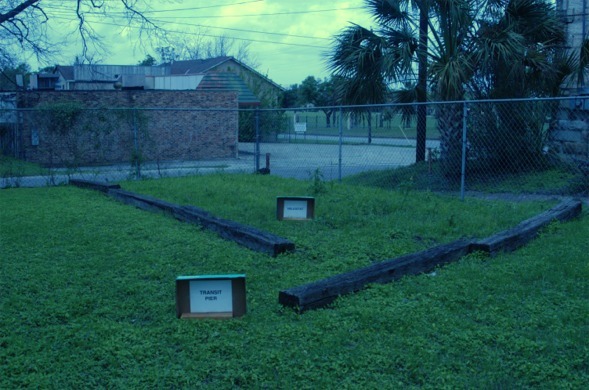

A view to the east showing the Inn and the location of the instruments. Photo R. Frankenberger.

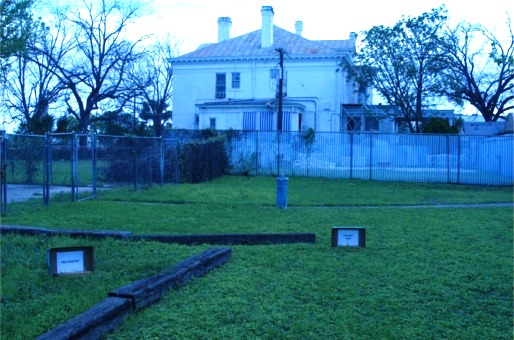

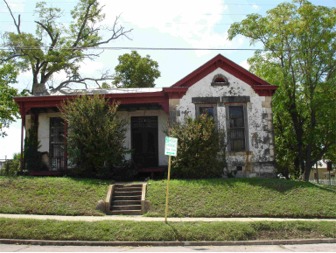

A view to the north. Houzeau’s weather instruments would have been positioned in the left part of the frame. The large trees were not present in 1882. Photo R. Frankenberger.
The following account was written by Don Finley of the San Antonio Express in 2004.
“Jean-Charles Houzeau slipped on a yellow shirt, a blue sombrero and red-and-white striped trousers, introduced himself as Carlos Uso and bribed members of a Mexican wagon team to get him out of San Antonio and across the border. Houzeau was on the run. The Confederate authorities were conscripting every able-bodied man they could find and had offered to make the Belgian astronomer an officer. He told them he’d rather cut off his right hand.
But he did return. In a little-known chapter of San Antonio history, Houzeau came back to the city in late 1882 and set up an observatory at a small house at Palmetto Avenue and Grayson Street. There, he observed and recorded a rare celestial phenomenon — the visible passage of Venus across the face of the sun. By any standard, Houzeau led a colorful life. Born to an aristocratic family, he scandalized his wealthy peers in Brussels with his marriage to a servant. But the marriage was in keeping with Houzeau’s passionate views on social and racial equality, which were radical for his time. After publishing those views in various magazines, he was fired from the Royal Observatory. Leaving his wife behind, he traveled to America in 1857 on an emigrant ship so wretched that its passengers were fed pea soup and scraps from the crew’s table, according to a 1990 biography in Sky & Telescope magazine by David S. Evans, professor emeritus of astronomy at the University of Texas at Austin. He could have afforded better transportation, but the company was in keeping with his politics.
The ship docked in New Orleans, and Houzeau caught a wagon train to San Antonio. He worked as a surveyor, continued his studies of the heavens and wrote articles on American life for European publications. At one point he lived in Uvalde until a series of Indian raids forced the evacuation of the town.
Houzeau is famous for his bibliography of astronomical observations, whose catalog numbers still are used by scholars. His return to San Antonio apparently was without controversy, despite the drama of his departure. Accounts in the San Antonio Express described him as “an elderly gentleman, quiet, unostentatious of manner, and though time had silvered his hair and beard, and furrowed his cheek and brow, the quick, keen, penetrating look from his dark eyes gave evidence of intellect within.”
The idea to use the transit of Venus to triangulate the Earth-sun distance, known as the solar parallax, belonged to Edmund Halley (discoverer of Halley’s Comet), who by then had died. Several teams of astronomers traveled to points throughout the world — including two Belgian teams, one in San Antonio and the other in Santiago, Chile.
Houzeau brought with him a telescope of his own creation, called a heliometer, designed to overcome distortion and glare inherent in observing the sun. It had a lens cut in two, so each lens could be moved independently. The subsequent double images could be superimposed for a more accurate measurement. Unfortunately, clouds obscured the view for the start of the four-hour transit. Still, Houzeau told a reporter he was able to obtain some 120 measurements. Houzeau died at age 67. In keeping with his politics, his memorial service was held in a simple room despite the magnitude of his accomplishments. His death was noted in newspapers across Europe. But not, apparently, in San Antonio and New Orleans, where he had spent nearly two decades fighting for civil rights.”

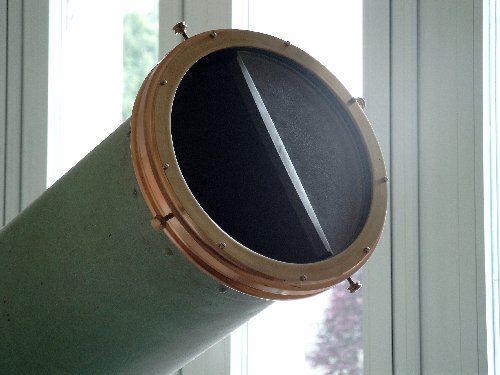

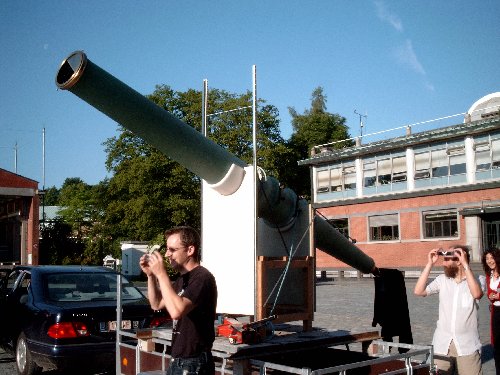

The heliometer developed by Houzeau still exists and was refurbished and shown to the public on June 8, 2004 in Belgium to celebrate the first Transit of Venus to occur since 1882.

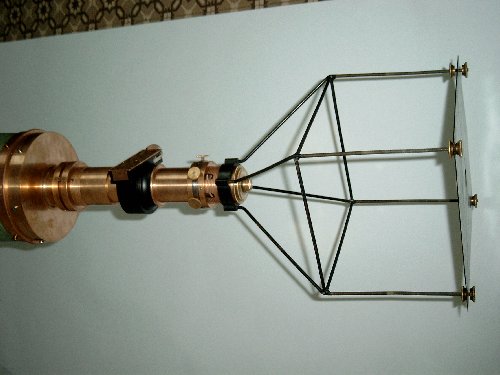

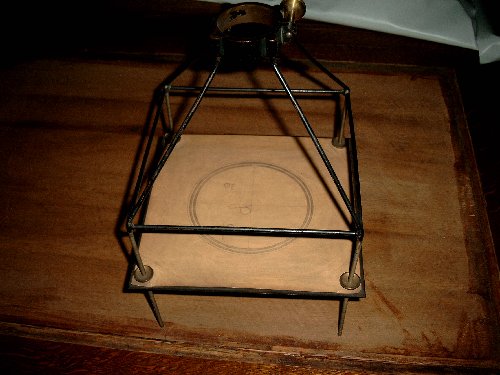

The structure of the solar telescope. Photo J.Cuypers.
The Texas historical marker was approved in 2005 by the Texas Historical Commission based on data supplied by this author. Funds were raised by the San Antonio Astronomy Association which paid for the casting and shipping of the marker to San Antonio.
The previous night the equipment was readied and on December 5 there was a bit of cirrus in the sky but otherwise it was generally clear. It was the usual clouds from the southeast (Gulf of Mexico) that swarmed in the following morning around 5.30am that caused the greatest alarm. But at 6.15am Houzeau walked down to the U.S. Naval Observatory site and compared chronometers. On transit day Houzeau used a 110mm aperture Merz refractor at 125x, while Lancaster was the heliometer operator. This device was equatorially mounted. It has a 0.18m (about 7 inches) aperture and 4.3m focal length (about 170 inches). Stuyvaert used a Fraunhofer refractor of 75mm aperture at 90x. David Haynes located the account produced in the San Antonio newspaper on December 7, 1882. Some of this account is generally factual but many details are missing and some are simply inaccurate. The newspaper reported that Houzeau was delighted with the results of his observations in spite of the fact that he regretted deeply that he had lost the first external contact at 7.29am and also the first internal contact taking place at 7.50am; as soon as opportunity arrived with his assistants he went immediately to work engaging his special heliometer. His work consisted entirely of measurements. At about 9.30am Houzeau got his first glimpse of the sun. The sky continued to clear until about noon all the clouds had disappeared from the region of the sun, and from that time until 1.36pm when the transit terminated Houzeau and his team was most successful. The last two glimpses of Venus occurred at 1.14 and 1.34pm. As you can see from the image below, Venus has such a large diameter that it takes quite a while to pass completely off the sun’s disc. Unfortunately no photgraphs were taken of the 1882 expedition or the site that survived the time.
While you are attending the ceremony, take the time to stop by and view the marker for the United States Naval Observatory expedition 500 meters east on the grounds of the U.S. Army facility at Fort Sam Houston. Here is the location map. Access is restricted to specific gates. The closest one is on Walters St which is an exit off Hwy. 35. Follow Walters St. to the north to the gate. Be prepared to show identification.
